1 piece available
The Galileo Callisto 616 array processor is an elegant hardware and software solution for driving and aligning Meyer Sound loudspeaker array systems. The 2-space, rack-mount Callisto 616 includes six inputs, 16 outputs, and a fully digital matrix processor. The accompanying Compass®control software provides comprehensive control of all parameters from a Mac® or Windows®-based computer.
Features:
- Six inputs (analog, AES/EBU, or mixed) and 16 analog outputs with full matrix mixing and routing for driving systems of any size
- Robust +26 dBu outputs easily drive Meyer Sound self-powered loudspeaker systems over long cable runs
- A/D/A conversion with 24-bit resolution at 96 kHz; digital inputs converted to 96 kHz sample rate
- Monolithic 1 GHz vector DSP architecture
- Internal processing performed at 96 kHz, 32-bit floating point resolution with fixed latency across all output channels
- Delay integration for M Series line array loudspeakers
- Atmospheric correction filters
- U-Shaping equalization and 10-band parametric filtering yield corrections with minimal impact on phase response
- Simultaneous low- and high-pass filters
- Up to 2 seconds of delay on inputs and outputs

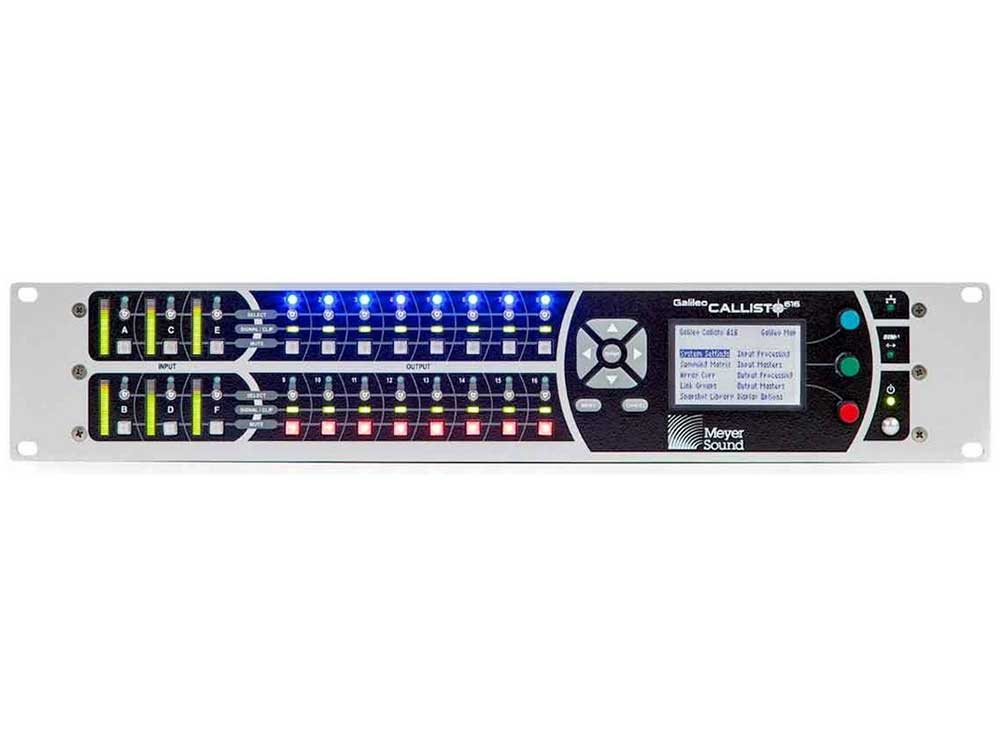

- Front-panel LED ladder meters on inputs, presence/clip LEDs on outputs, and illuminated mute switches
- Ethernet connection for remote control from Mac and Windows-based computers running the Compass control software
- Direct connection to Meyer Sound’s SIM 3 audio analyzer
